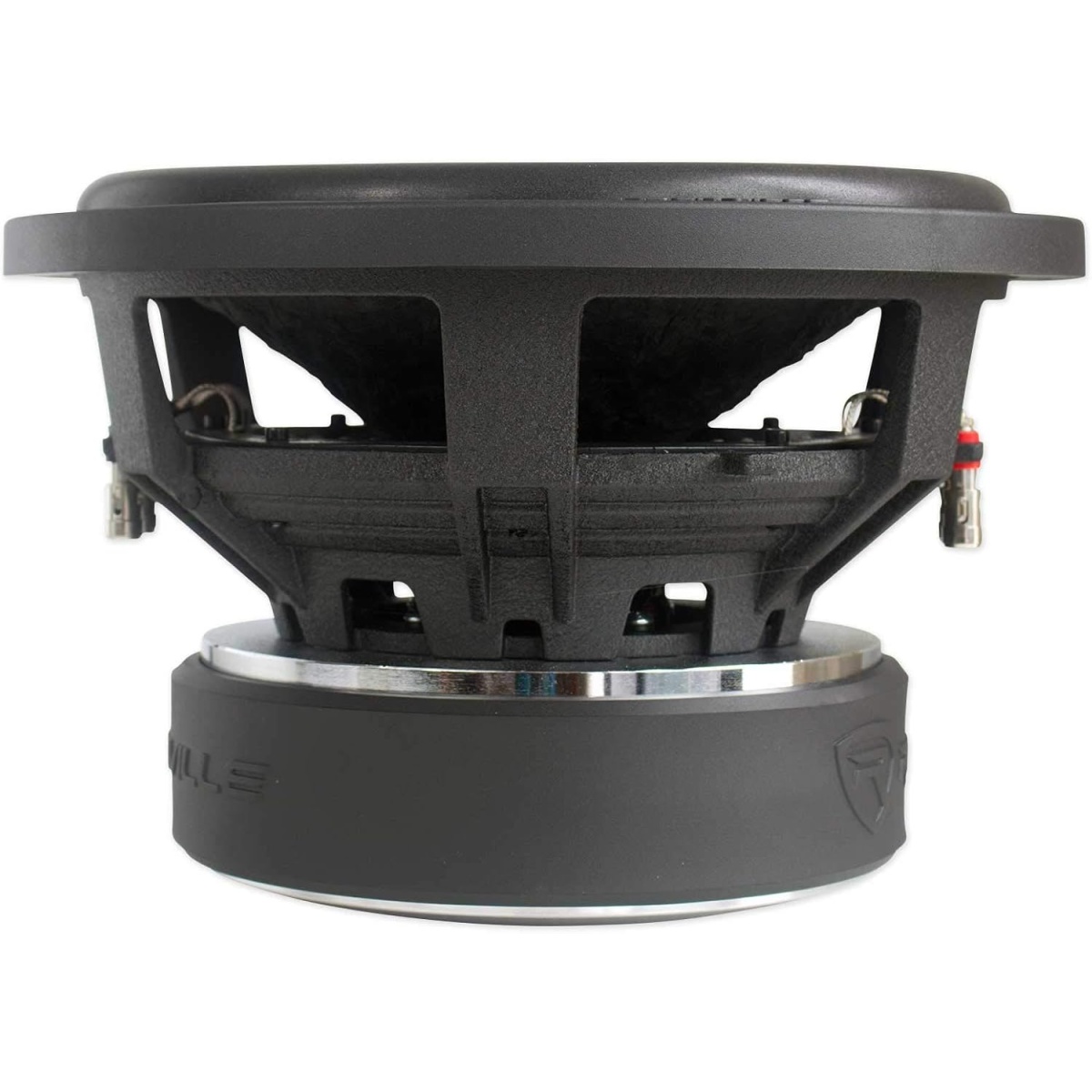

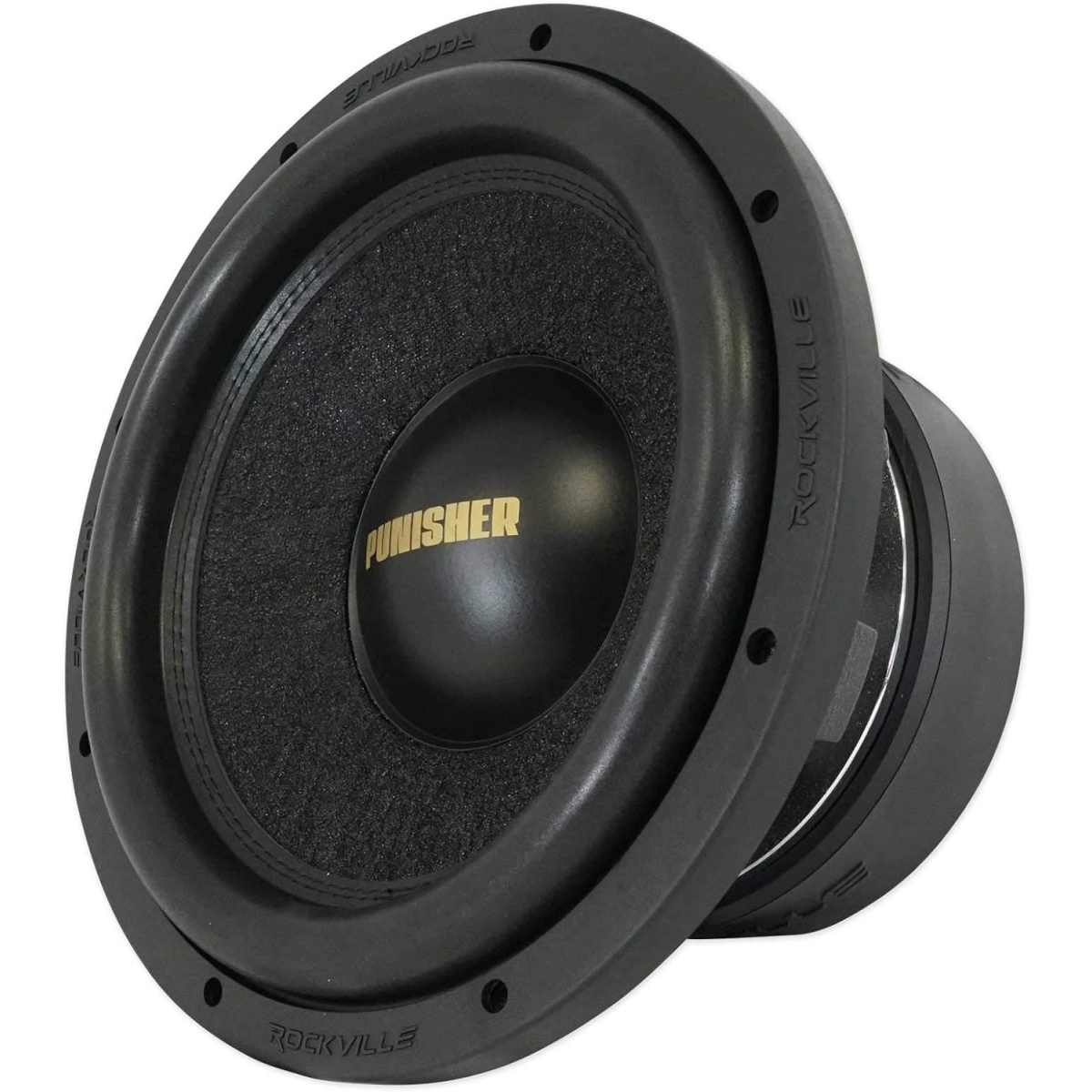

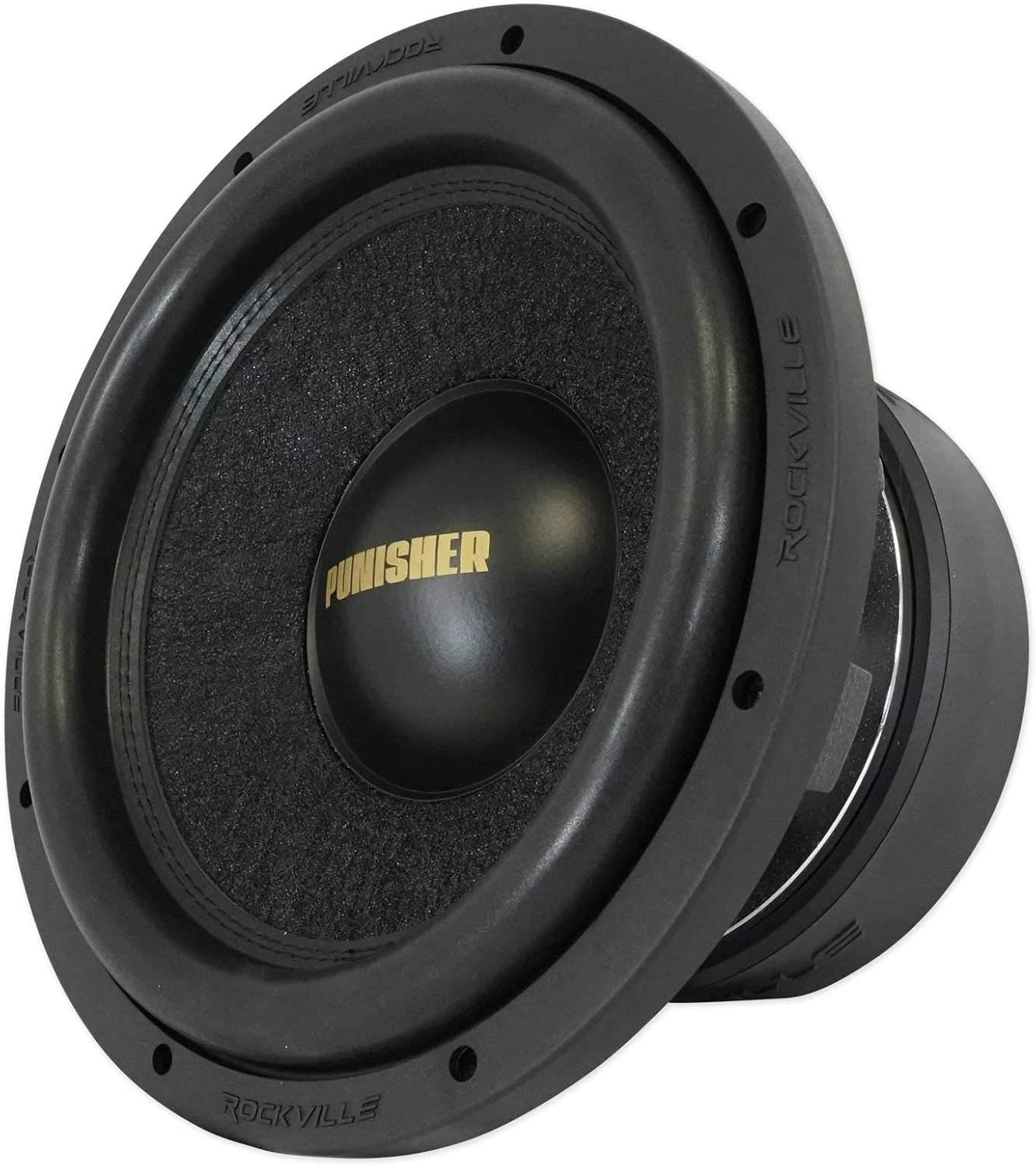

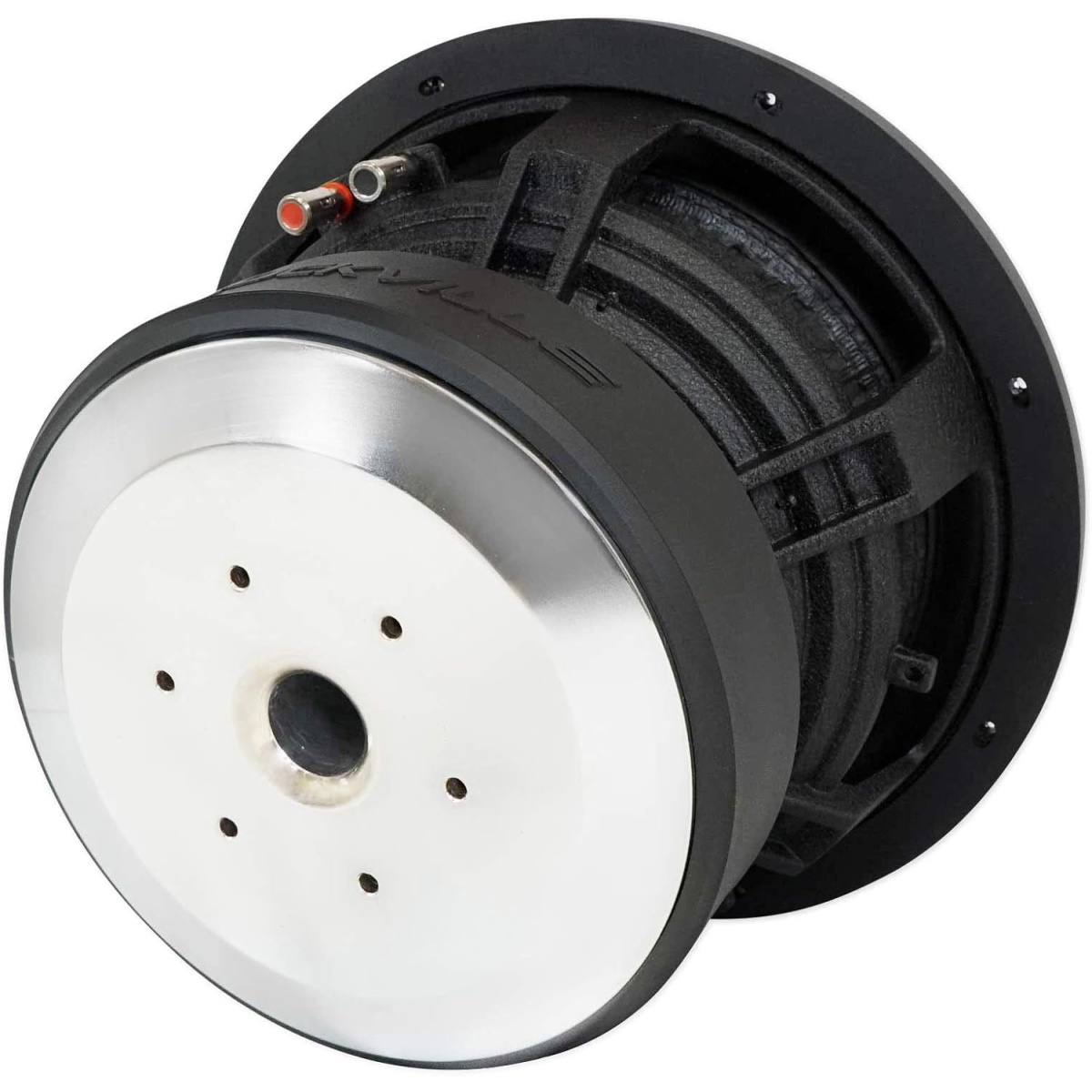

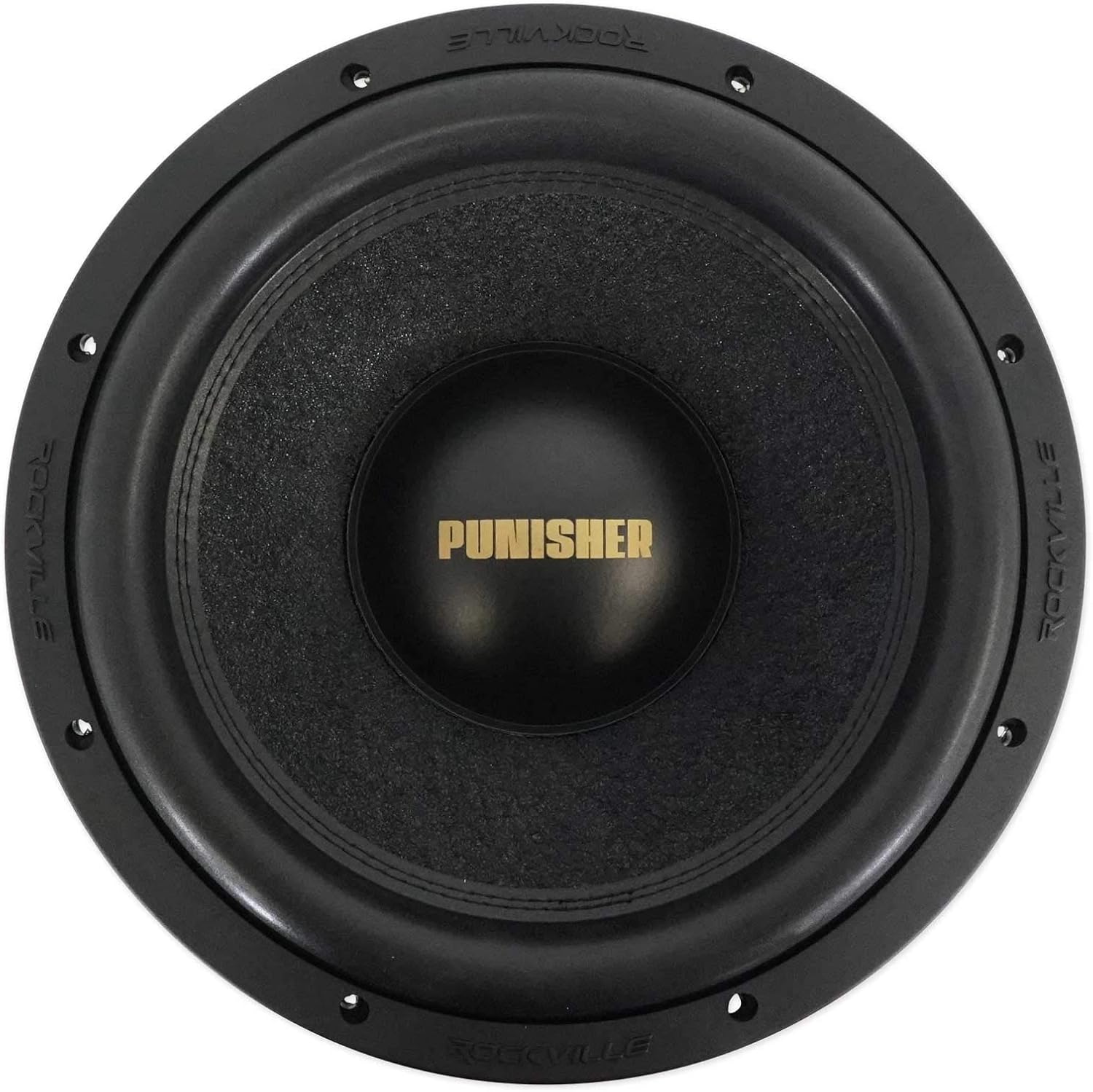

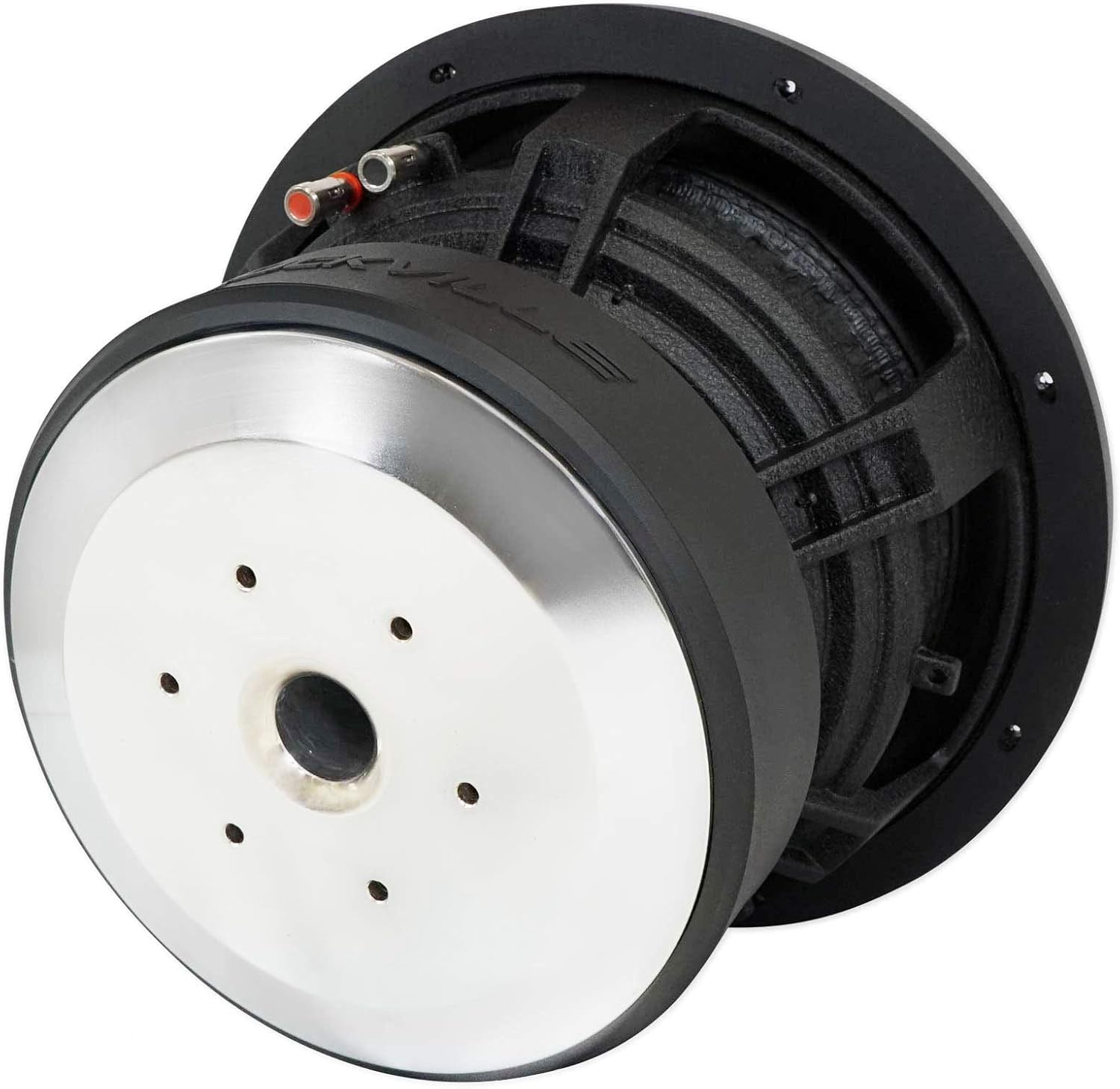

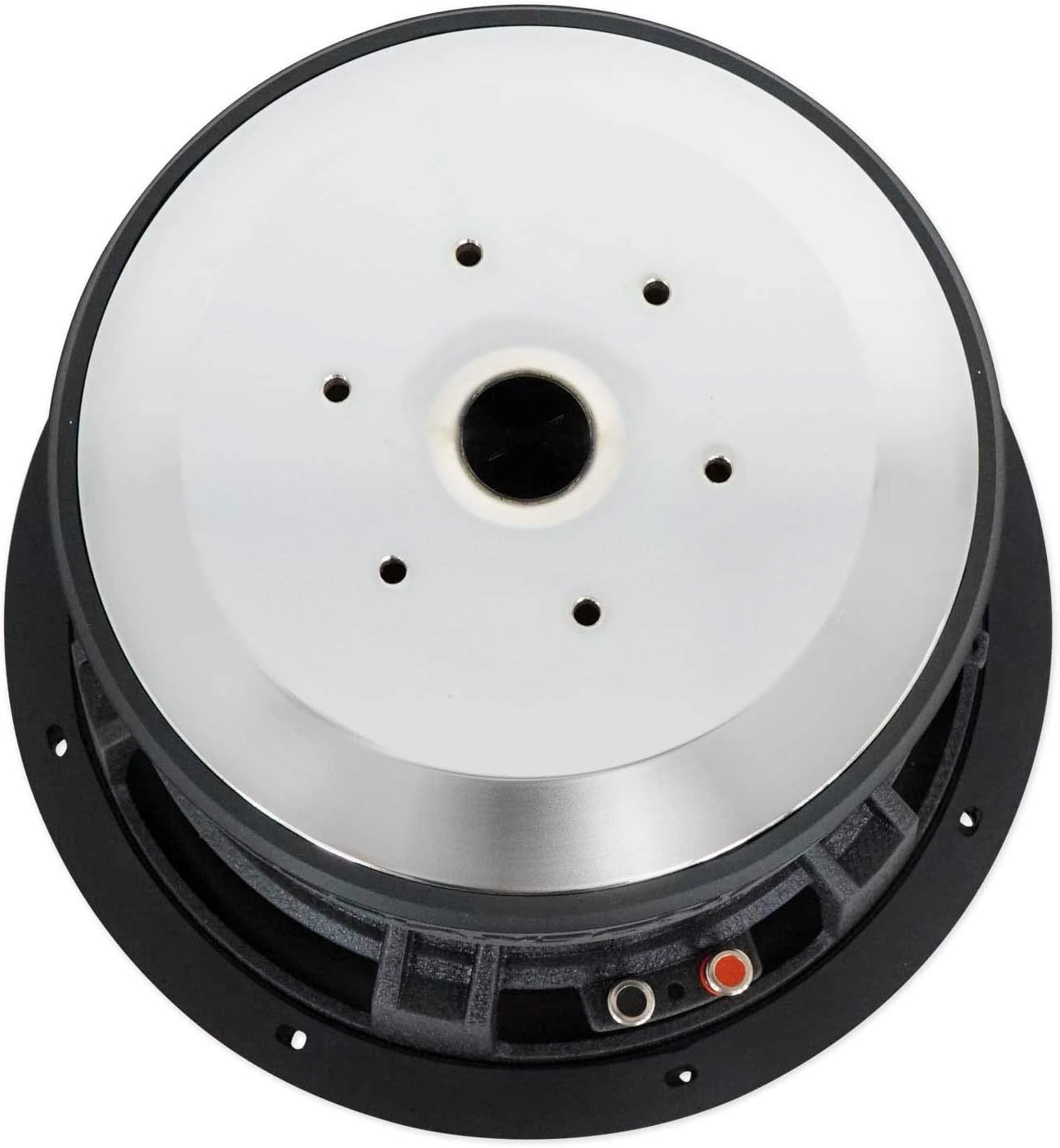

Rockville Punisher 12D1 12″ 5600w Peak Car Audio Competition Subwoofer

Product Description

Rockville Punisher 12D1 12″ 5600w Competition Car Audio Subwoofer Dual 1-Ohm Sub

Features:

Rockville PUNISHER Series 12″ Dual 1-Ohm Car SubwooferPeak Power Handling: 5600 WattsProgram Power Handling: 2800 WattsCEA Rated RMS Power Handling: 1400 Watts3″ 4-Layer Black Aluminum Voice Coil Former Wound with OFC WireThis voice coil is stable up to 250 degrees celsius! The voice coil windings are made in the USADouble Stacked 246 Oz Y35 MagnetCast Aluminum Basket With Black Sanded FinishTwo Chrome-Plated Binding Post TerminalsBlack Non-Pressed Paper ConeUltra-Stiff cone is extremely thick and strongThick Foam Surround Provides Incredible Sound Quality With Minimal DistortionBlack stitching reinforces the cone and ensures long lifeNew Ultra-stiff PolyPropylene (PP) Dustcap is 0.9mm thick (Extremely, thick, beefy, and stiff)Oversized aluminum heatsink ring keeps the voice coils cool by absorbing and dissipating heatExtra thick T-yoke and washers assist in keeping the voice coils cool by absorbing and dissipating heatThis series was engineered from the ground up to keep the voice coils cool so that even if you play test tones for long periods of time in a competition atmosphere the sub can handle itImpedance: Dual 1-Ohm Voice CoilsVented Holes on T-yoke Enhances Heat DissipationCustom Rubber Boot Magnet CoverCustom Rockville Mounting Gasket makes it Easy To Mount the Subwoofer Air-TightHigh BL Magnetic Motor GapWe use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated3 layer spider made with thick gauge material that is resistant to tearing even at extreme SPL levelsEasy to install recone kits are availableCutout Diameter:11.22 inchesMounting Depth:7.48 inchesFrequency Response: 31.634 Hz -500Hz15mm T-Yoke + 12mm Washer

Sensitivity: 85dBSealed Enclosure Volume:1.24-2.12 Cubic FeetVented/Ported Enclosure Volume: 1.94-2.83 Cubic Feet1-Way XMAX: 28 MM2-Way XMAX:56 MMWeight: 41.08 lbs.Shipping Weight: 43.28 lbs.Shipping Box Dimensions: 15.75” x 15.75” x 13.58” Inches

Detailed Info:

Body: Non-Pressed PaperGap Plate Inside Diameter: 84.1mm (3.31 inches)Gap Plate Outside Diameter: 210mm (8.27 inches)Gap Plate Thickness: 12mm (0.47 inch)Yoke Outside Diameter: 210mm (8.27 inches)Yoke Thickness: 15mm (0.59 inches)Yoke Pole Diameter: 75mm (2.95 inches)

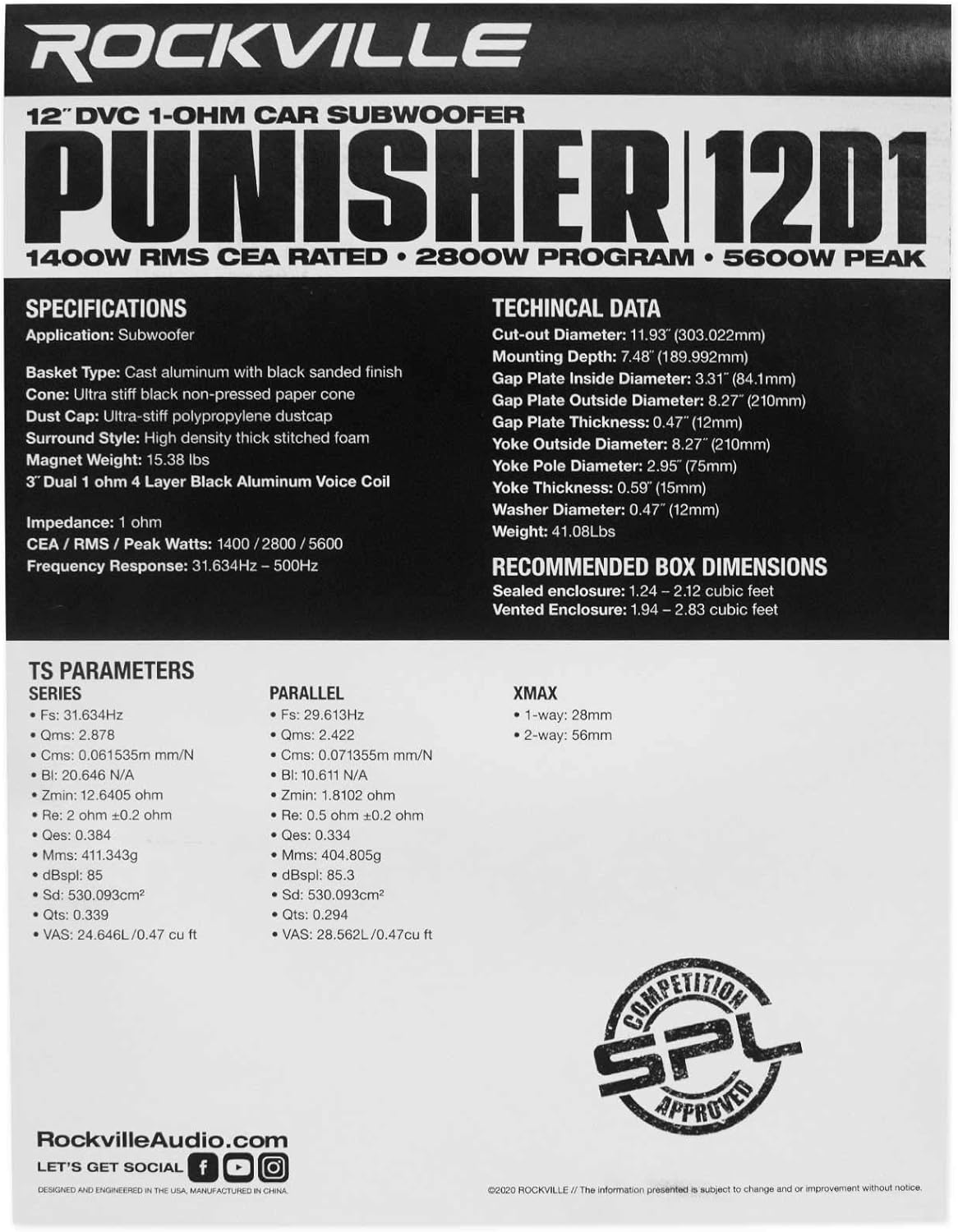

TS Parameters:

Series

Fs: 31.634 HzQms: 2.878Cms: 0.061535 mm/NBl: 20.646 N/AZmin: 12.6405 ΩRe: 2 Ω ±0.2 ΩQes: 0.384Mms: 411.343gdBspl: 85Sd: 530.093 cm²Qts: 0.339VAS: 24.646 L / .47 cu ft

Parallel

Fs: 29.613 HzQms: 2.422Cms: 0.071355 mm/NBl: 10.611 N/AZmin: 1.8102 ΩRe: 0.5 Ω ±0.2 ΩQes: 0.334Mms: 404.805 gdBspl: 85.3Sd: 530.093 cm²Qts: 0.294VAS: 28.562 L / .47 cu ft

Features: Rockville PUNISHER Series 12″ Dual 1-Ohm Car Subwoofer, Peak Power Handling: 5600 Watts, Program Power Handling: 2800 Watts, CEA Rated RMS Power Handling: 1400 Watts, 3″ 4-Layer Black Aluminum Voice Coil Former Wound with OFC Wire, This voice coil is stable up to 250 degrees celsius! The voice coil windings are made in the USA, Double Stacked 246 Oz Y35 Magnet, Cast Aluminum Basket With Black Sanded Finish, Two Chrome-Plated Binding Post Terminals, Black Non-Pressed Paper Cone
Ultra-Stiff cone is extremely thick and strong, Thick Foam Surround Provides Incredible Sound Quality With Minimal Distortion, Black stitching reinforces the cone and ensures long life, New Ultra-stiff PolyPropylene (PP) Dustcap is 0.9mm thick (Extremely, thick, beefy, and stiff), Oversized aluminum heatsink ring keeps the voice coils cool by absorbing and dissipating heat, Extra thick T-yoke and washers assist in keeping the voice coils cool by absorbing and dissipating heat
This series was engineered from the ground up to keep the voice coils cool so that even if you play test tones for long periods of time in a competition atmosphere the sub can handle it, Impedance: Dual 1-Ohm Voice Coils, Vented Holes on T-yoke Enhances Heat Dissipation, Custom Rubber Boot Magnet Cover, Custom Rockville Mounting Gasket makes it Easy To Mount the Subwoofer Air-Tight, High BL Magnetic Motor Gap
We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated, 3 layer spider made with thick gauge material that is resistant to tearing even at extreme SPL levels, Easy to install recone kits are available, Cutout Diameter:11.22 inches, Mounting Depth:7.48 inches, Frequency Response: 31.634 Hz -500Hz, 15mm T-Yoke + 12mm Washer, Sensitivity: 85dB, Sealed Enclosure Volume:1.24-2.12 Cubic Feet
Vented/Ported Enclosure Volume: 1.94-2.83 Cubic Feet, 1-Way XMAX: 28 MM, 2-Way XMAX:56 MM, Weight: 41.08 lbs., Shipping Weight: 43.28 lbs., Shipping Box Dimensions: 15.75” x 15.75” x 13.58” Inches
